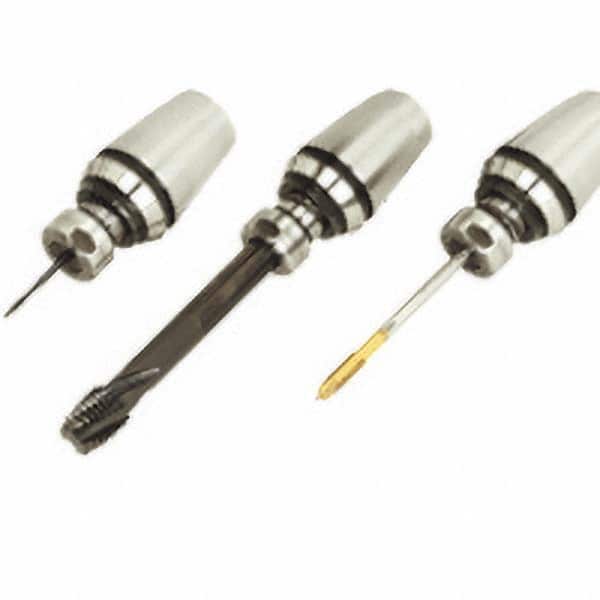

Iscar - 1mm to 13mm Capacity, 150mm Projection, BT40 Taper Shank, ER20 Collet Chuck - Through-Spindle
Item #: 07546831
Brand: Iscar
Model #: 4510006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (mm) | 150.00 |
| Projection (Decimal Inch) | 5.9055 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle |
