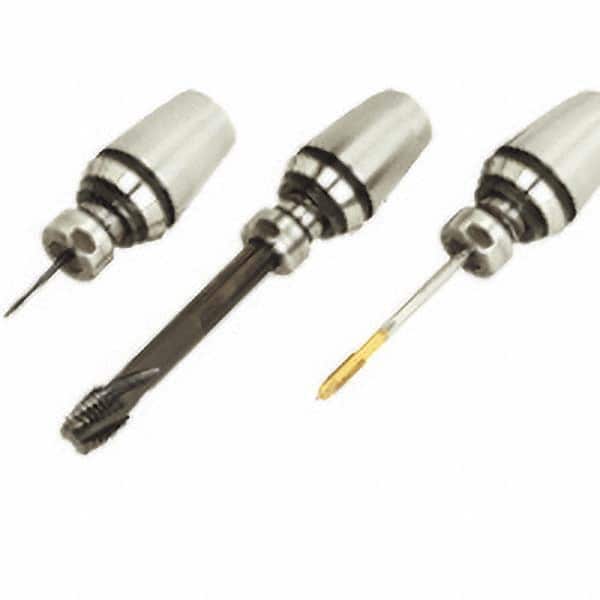

Iscar - 0.039" to 0.512" Capacity, 3.937" Projection, BT40 Taper Shank, ER20 Collet Chuck - Through-Spindle
Item #: 07546823
Brand: Iscar
Model #: 4510005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.5120 |
| Nose Diameter (Decimal Inch) | 1.3390 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| Coolant Type | Through-Spindle |
