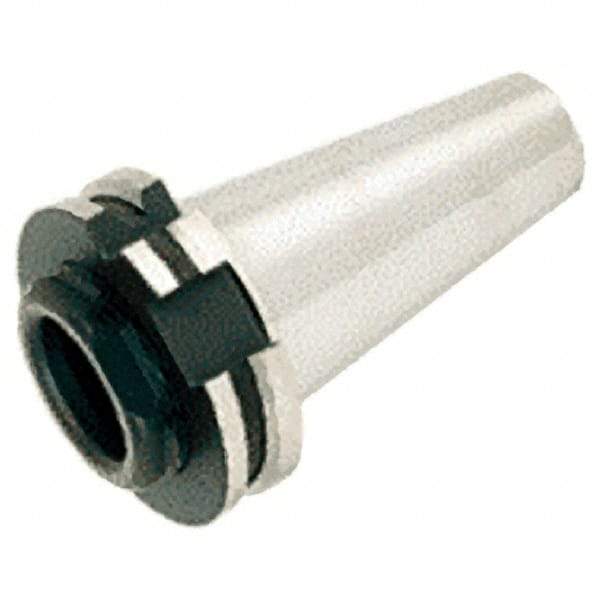

Iscar - 2mm to 20mm Capacity, 1-1/8" Projection, CAT50 Taper Shank, ER32 Collet Chuck - Through-Spindle
Item #: 07546807
Brand: Iscar
Model #: 4509195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 1.1260 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| Coolant Type | Through-Spindle |
