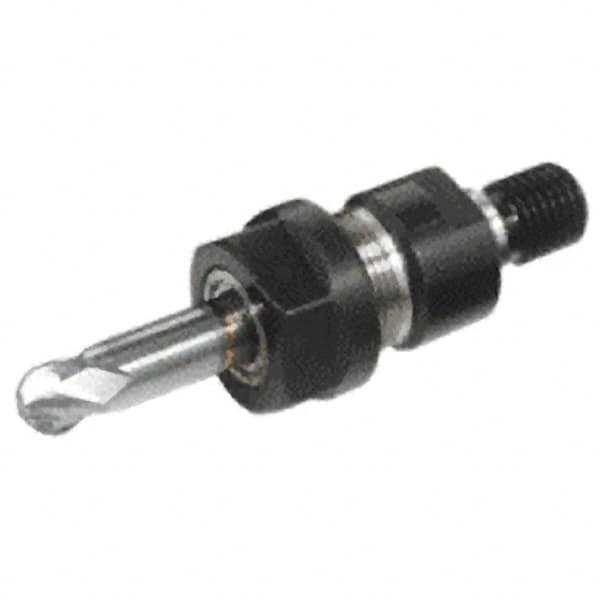

Iscar - 1mm to 13mm Capacity, 45.5mm Projection, Threaded Shank, ER20 Collet Chuck - 70.5mm OAL
Item #: 07546724
Brand: Iscar
Model #: 4509097
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Threaded Shank |
| Threaded Shank Size | M16 |
| Projection (mm) | 45.50 |
| Projection (Decimal Inch) | 1.7913 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 70.50 |
| Overall Length (Decimal Inch) | 2.7756 |
| Actuator Type | Wrench |
| Shank Length (mm) | 25.00 |
| Shank Length (Decimal Inch) | 0.9843 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
