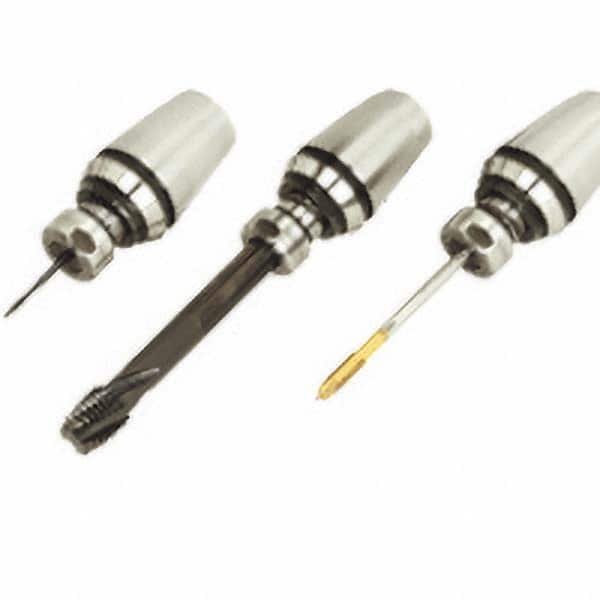

Iscar - 0.5mm to 7mm Capacity, 27mm Projection, Threaded Shank, ER11 Collet Chuck - 47mm OAL
Item #: 07546708
Brand: Iscar
Model #: 4509092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Threaded Shank |
| Threaded Shank Size | M10 |
| Projection (mm) | 27.00 |
| Projection (Decimal Inch) | 1.0630 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.2756 |
| Overall Length (mm) | 47.00 |
| Overall Length (Decimal Inch) | 1.8504 |
| Actuator Type | Wrench |
| Shank Length (mm) | 20.00 |
| Shank Length (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 0.6299 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
