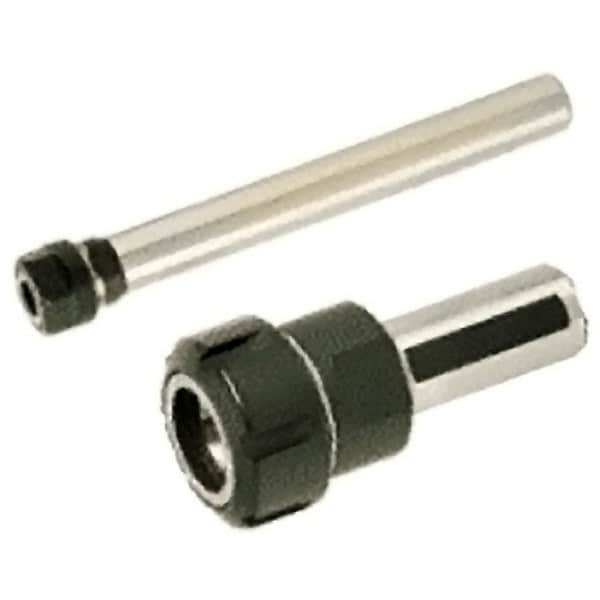

Iscar - 1mm to 16mm Capacity, 46mm Projection, Straight Shank, ER25 Collet Chuck - 146mm OAL, 25mm Shank Diam
Item #: 07546492
Brand: Iscar
Model #: 4508013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Projection (mm) | 46.00 |
| Projection (Decimal Inch) | 1.8110 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 146.00 |
| Overall Length (Decimal Inch) | 5.7480 |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
