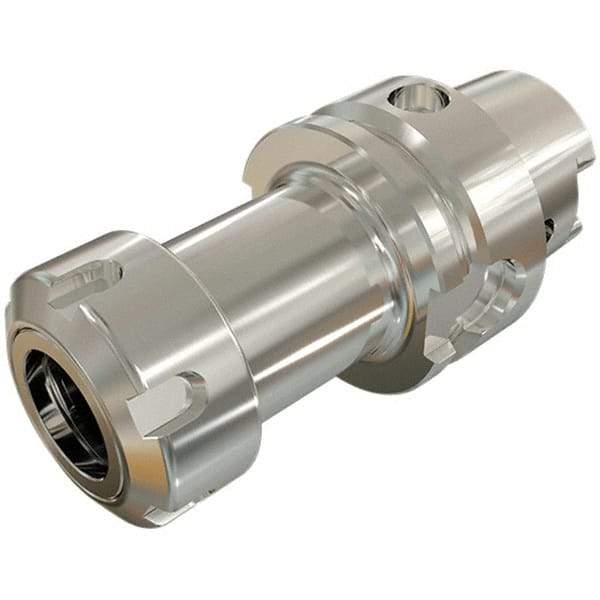

Iscar - 10mm to 34mm Capacity, 100mm Projection, HSK100A Hollow Taper, ER50 Collet Chuck - Through-Spindle
Item #: 07546369
Brand: Iscar
Model #: 4503591
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER50 |
| Shank Type | Hollow Taper |
| Taper Size | HSK100A |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.3937 |
| Minimum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (mm) | 34.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.3386 |
| Nose Diameter (mm) | 78.00 |
| Nose Diameter (Decimal Inch) | 3.0709 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle |
