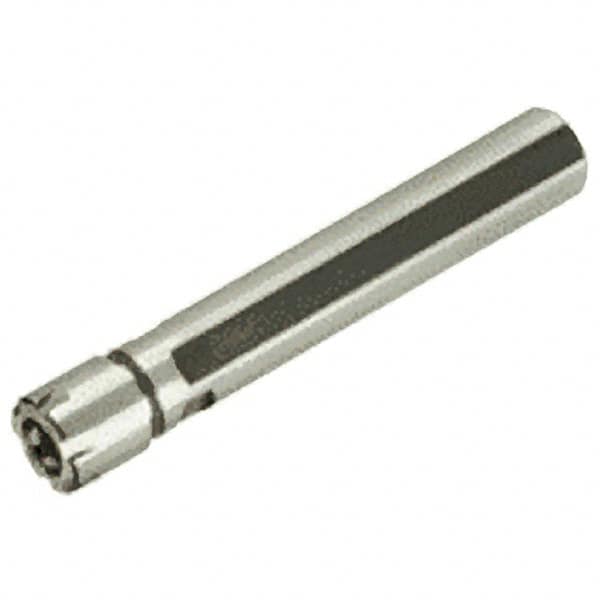

Iscar - 1mm to 16mm Capacity, 30mm Projection, Straight Shank, ER25 Collet Chuck - 100mm OAL, 32mm Shank Diam
Item #: 07543705
Brand: Iscar
Model #: 4502000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Projection (mm) | 30.00 |
| Projection (Decimal Inch) | 1.1811 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 35.00 |
| Nose Diameter (Decimal Inch) | 1.3780 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
