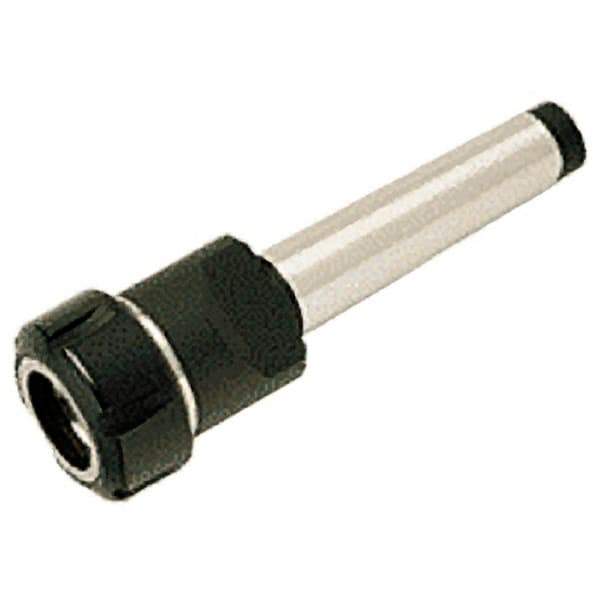

Iscar - 0.102" to 1.025" Capacity, 3.445" Projection, MT5 Taper Shank, ER40 Collet Chuck - Through-Spindle
Item #: 07543291
Brand: Iscar
Model #: 4501816
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Projection (Decimal Inch) | 3.4450 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1020 |
| Maximum Collet Capacity (Decimal Inch) | 1.0250 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch) | 2.4800 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
