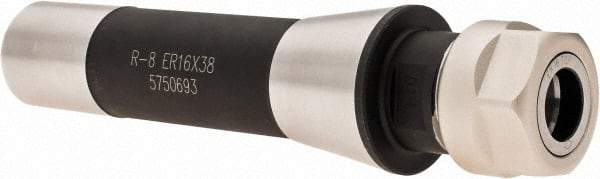

Iscar - 0.5mm to 10mm Capacity, 38mm Projection, R8 Taper Shank, ER16 Collet Chuck - Through-Spindle
Item #: 07530678
Brand: Iscar
Model #: 4500503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | R8 |
| Projection (mm) | 38.00 |
| Projection (Decimal Inch) | 1.4960 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Nose Diameter (mm) | 28.00 |
| Nose Diameter (Decimal Inch) | 1.1024 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
