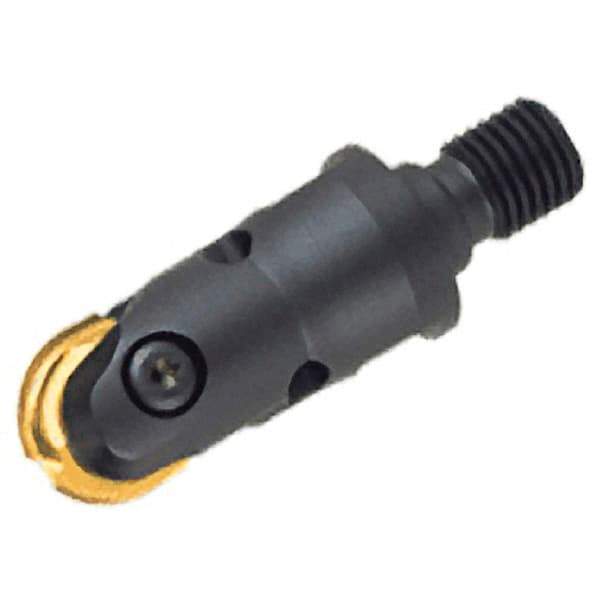

Iscar - 16mm Cut Diam, 9.4mm Max Depth of Cut, Indexable Ball Nose End Mill - 32.6mm Head Length, M08 Modular Connection, CDP D-M Toolholder
Item #: 07530579
Brand: Iscar
Model #: 3102060
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 9.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.3701 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M08 |
| Toolholder Style | CDP D-M |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Head Length (mm) | 32.60 |
| Head Length (Decimal Inch) | 1.2835 |
