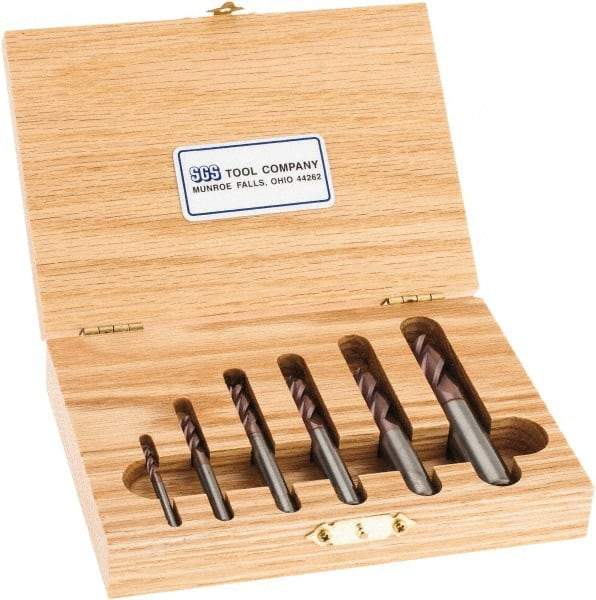

SGS - 1/8 to 1/2", 4 Flute Square End Mill Set - TiCN Coating, Solid Carbide, Single End, 1/8, 3/16, 1/4, 5/16, 3/8, 1/2" Shank Diam, Centercutting
Item #: 07300858
Brand: SGS
Model #: 39089
Exact Tooling IR#: 04
Features and Benefits
Square ends are used for general milling applications including slotting, profiling and plunge cutting.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Roughing | No |
| End Type | Square |
| Minimum Mill Diameter (Inch) | 1/8 |
| Maximum Mill Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Centercutting | Center Cutting |
| Number of Pieces | 6 |
| Single or Double End | Single |
| Mill Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 3/8; 1/2 |
| Material Grade | Micrograin |
| Shank Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 3/8; 1/2 |
| Length Type | Regular |
