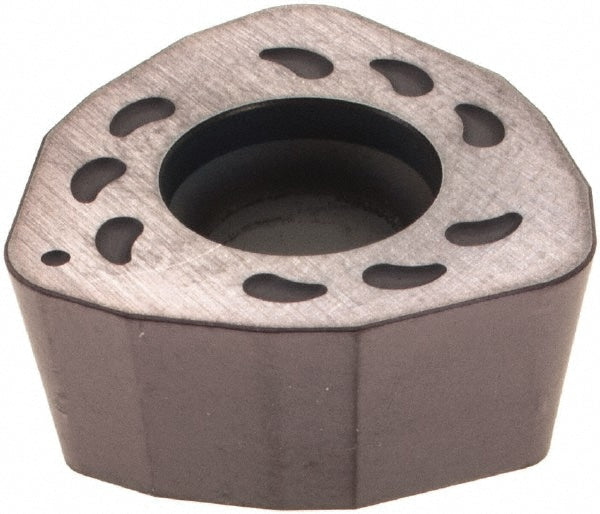

Milling Insert: WPMT090725ZSR AH120 AH120, Solid Carbide
Item #: 78068343
Brand: Tungaloy
Model #: 6821896
Product Specifications
| Insert Style | WPMT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | AH120 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2760 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 090725 |
| Material Grade | M15; S10; P15; K15 |
| Inscribed Circle (Decimal Inch) | 0.5910 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.6000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 3.00 |
| Series | WPMT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | WPMT090725ZSR AH120 |
| Iso Code | WPMT090725ZSR AH120 |
| Standards | ISO |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | WPMT090725ZSR |
| Cutter Series Compatibility | TXP05/06/08/09; EXP05/06/08/09 |
| Chip Breaker | Common |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.7080 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7080 |
| Country of Origin | Japan |
