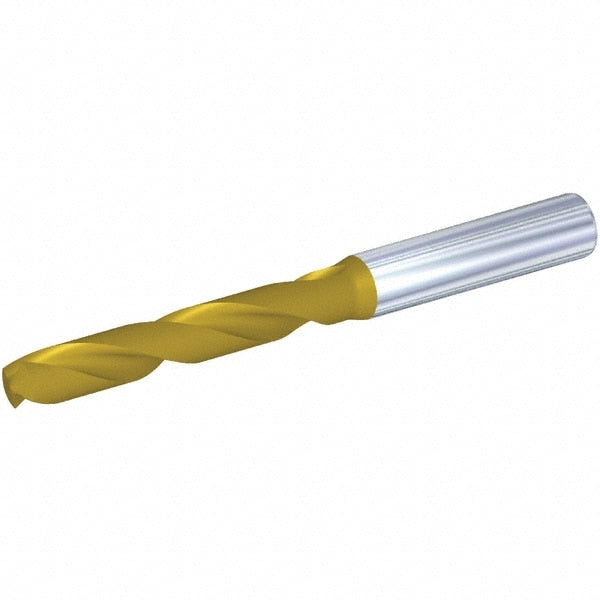

Jobber Drill: 4.09 mm Dia, 140 deg Point, Solid Carbide
Item #: 77361301
Brand: Kennametal
Model #: 4150652
Product Specifications
| Drill Bit Size (mm) | 4.09 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Series | B977 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.72 |
| Shank Type | Straight |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
