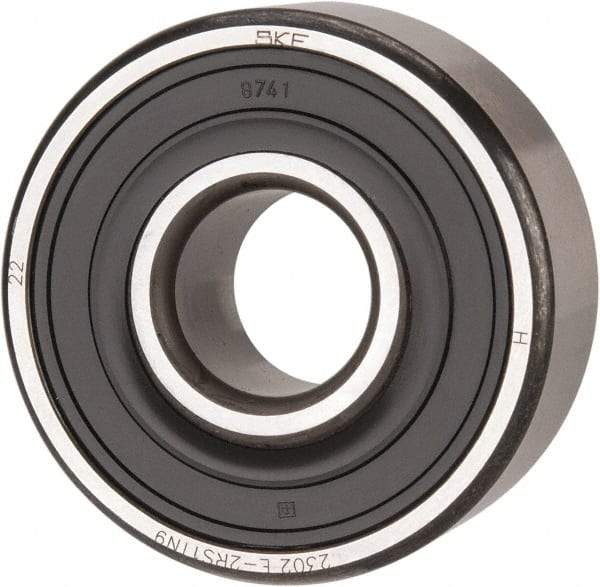

SKF - 15mm Bore Diam, 42mm OD, Double Seal Self Aligning Radial Ball Bearing - 17mm Wide, 2 Rows, Round Bore, 652 Lb Static Capacity, 2,680 Lb Dynamic Capacity
Item #: 07173503
Brand: SKF
Model #: 2302 E-2RS1TN9
Exact Tooling IR#: 04
Features and Benefits
Double Seal Bearings are factory lubricated with oil or grease and designed to retain lubricants while keeping contaminates out. The seal is on each side of the bearing and is located on the outer race making some contact with the inner race.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Self Aligning |
| Style | Double Seal |
| Bore Diameter (mm) | 15.00 |
| Outside Diameter (mm) | 42.00 |
| Width (mm) | 17.00 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 652 |
| Dynamic Load Capacity (Lb.) | 2680 |
| Cage Material | Glass fiber reinforced polyamide |
