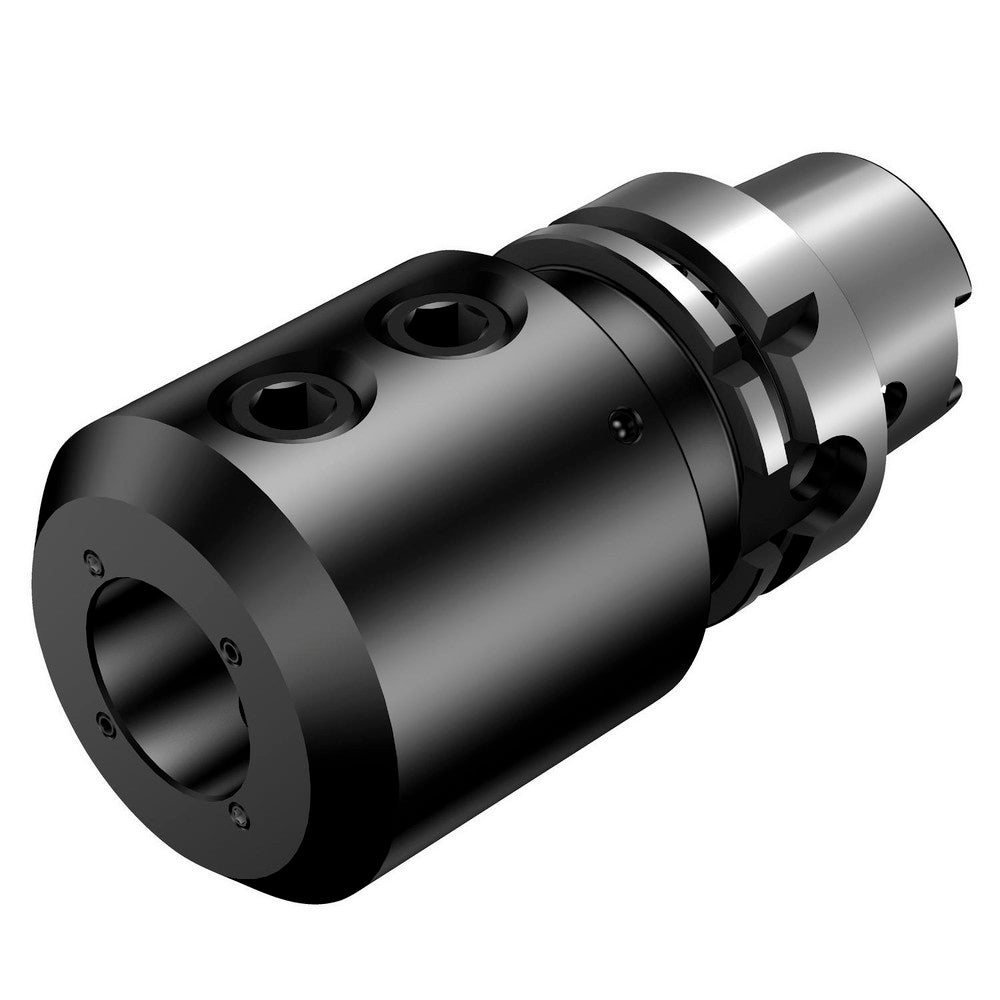

End Mill Holder: HSK63A Taper, Taper Shank, 32.00 mm Hole Dia
Item #: 01776822
Brand: Sandvik Coromant
Model #: 8330727
Product Specifications
| Shank Type | Taper |
| Modular Connection Size | HSK63A |
| Overall Length (mm) | 155 |
| Overall Length (Decimal Inch) | 6.1020 |
| Taper Size | HSK63A |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.2047 |
| Nose Diameter (Mm) ( - 2 Decimals) | 56.00 |
| Projection (Decimal Inch) | 4.3307 |
| Projection (mm) | 110.00 |
| Through Coolant | Yes |
| Machine Side Connection Type | Taper |
| Machine Side Connection Size | 63 mm |
| Tooling Side Connection Type | Weldon |
| Maximum RPM | 20500.000 |
| Includes | Adapter |
| For Use With | Milling Cutter |
| Series | HSK |
| UNSPSC Code | 27112807 |
