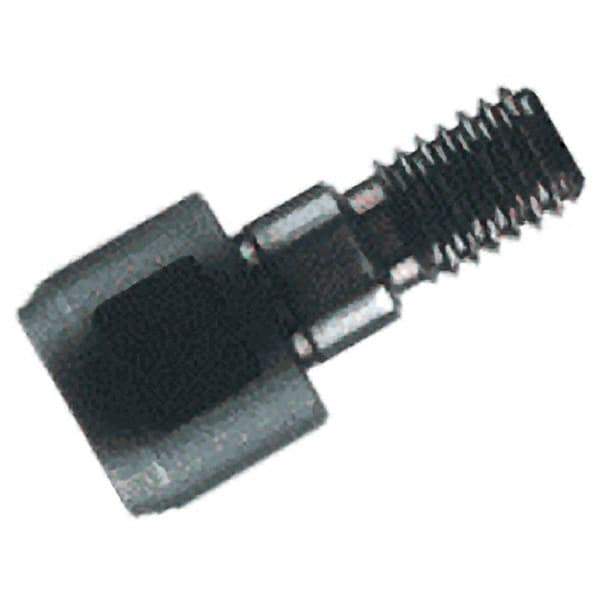

Iscar - T06 Connection to Tip, M10 Connection to Shank, Milling Tip Insert Threaded Extension - 0.9843 Inch Extension Length, 0.378 Inch Max Diameter, FlexFit and Multimaster Series
Item #: 07138126
Brand: Iscar
Model #: 3103013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | FlexFit; Multimaster |
| Thread Size Connection to Tip | T06 |
| Thread Size Connection to Shank | M10 |
| Extension Length (mm) | 25.00 |
| Extension Length (Decimal Inch) | 0.9843 |
| Connection Length (Decimal Inch) | 0.7874 |
| Connection Length (mm) | 20.00 |
| Maximum Diameter (mm) | 9.60 |
| Maximum Diameter (Decimal Inch) | 0.3780 |
