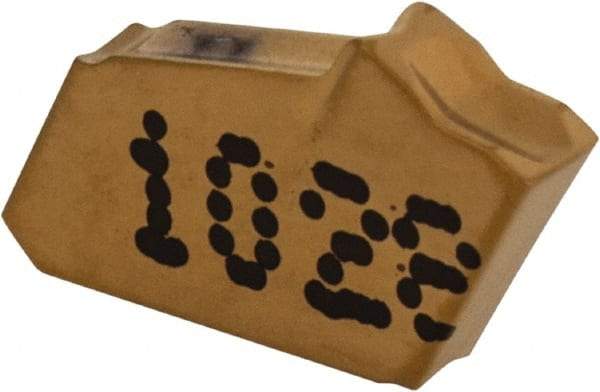

Iscar - GFN1.6 IC1028 Grade, 0.063" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0063" Cnr Rad, TiAlN/TiN Coated, Single End
Item #: 07079544
Brand: Iscar
Model #: 6003133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Insert Size | 1.6 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC1028 |
| Coating | TiAlN/TiN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0063 |
| Corner Radius (mm) | 0.16 |
| Insert Holding Method | Clamp |
| Overall Width (mm) | 1.60 |
| Overall Width (Decimal Inch) | 0.0630 |
