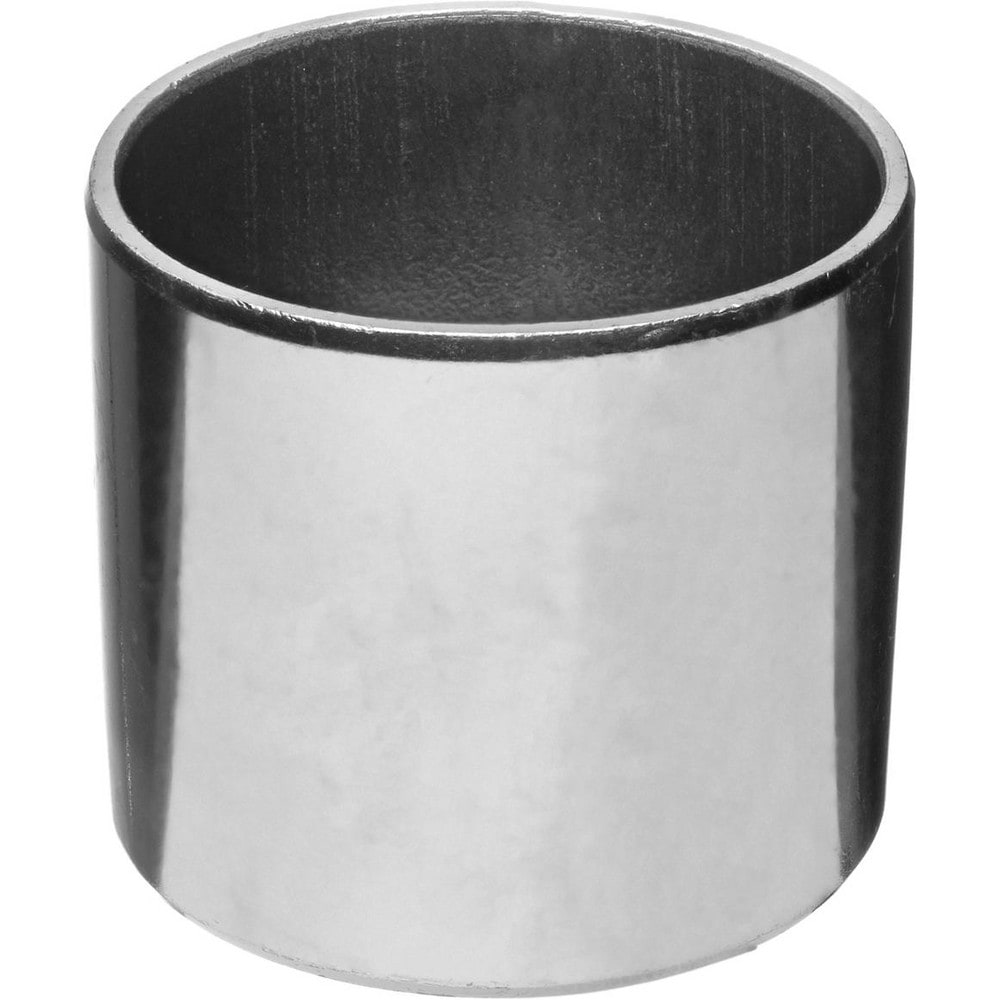

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 1-13/32; Outside Diameter (Decimal Inch - 4 Decimals): 1.4063; Inside Diameter (Inch): 1-1/4; Inside Diameter (Decimal Inch): 1.2500
Item #: 77018471
Brand: USA Industrials
Model #: ZUSAB-PB-912
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 1-13/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.4063 |
| Inside Diameter (Inch) | 1-1/4 |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Material | Steel |
| Overall Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 0.7500 |
| Static Load Capacity | 232785.46 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 1.4070 |
| Housing Bore Limits Mininum | 1.4060 |
| Inside Diameter (mm) | 31.7500 |
| Overall Length (mm) | 19.05 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
