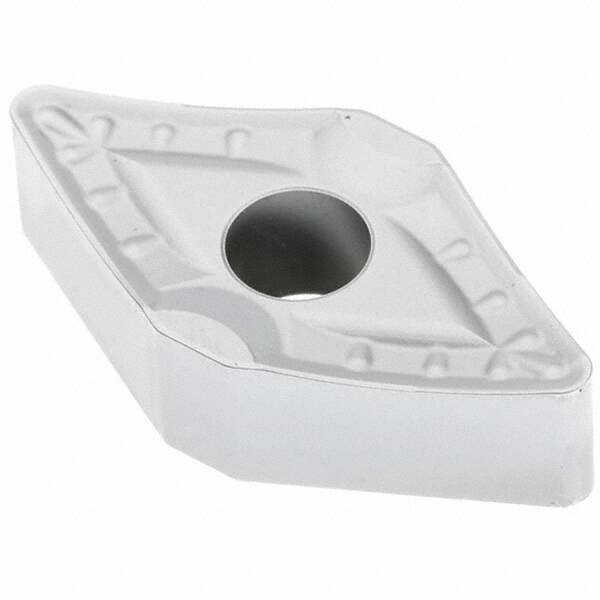

Seco - DNMM444 R4 Grade TP0501 Carbide Turning Insert
Item #: 96216825
Brand: Seco
Model #: 03156864
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMM |
| Insert Size | 444 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | TP0501 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | R4 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | DNMM150616-R4 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 19 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMM444-R4 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DNMM |
| Maximum Depth of Cut (Decimal Inch) | 0.4730 |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Diamond |
