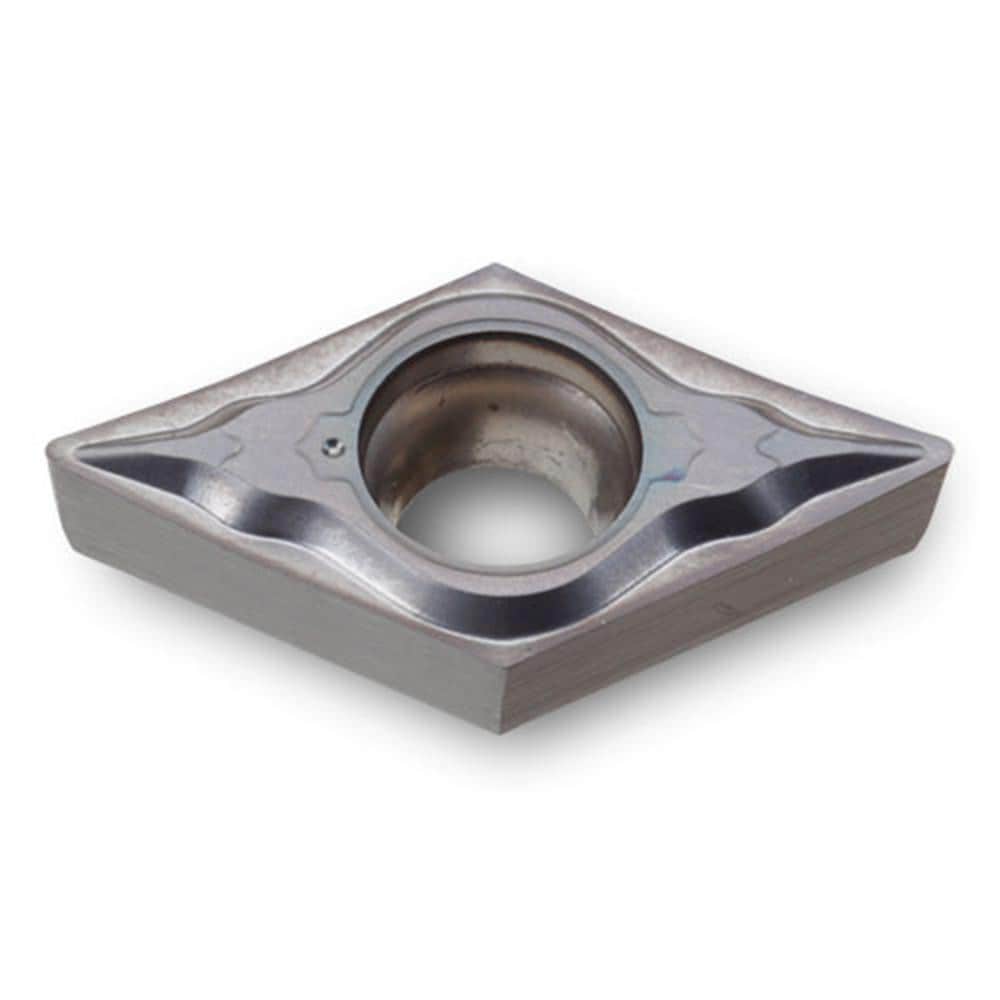

Turning Insert: DCGT21.50.5SA TT9020, Carbide
Item #: 61957932
Brand: Ingersoll Cutting Tools
Model #: 5519913
Product Specifications
| ANSI Insert Code | DCGT21.50.5 |
| ISO Insert Code | DCGT070202 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55 |
| Manufacturer Grade | TT9020 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Series | DCGT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3030 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | DCGT070202SA TT9020 |
| Chip Breaker | SA |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 070202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
| ANSI Insert Code | DCGT21.50.5 |
| ISO Insert Code | DCGT070202 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55 |
| Manufacturer Grade | TT9020 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Series | DCGT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3030 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | DCGT070202SA TT9020 |
| Chip Breaker | SA |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 070202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
| MSC Part # | 61957932 |
| Mfr Part # | 5519913 |
