Tungaloy - SNMG544 TH Grade T9225 Carbide Turning Insert - Americas Industrial Supply

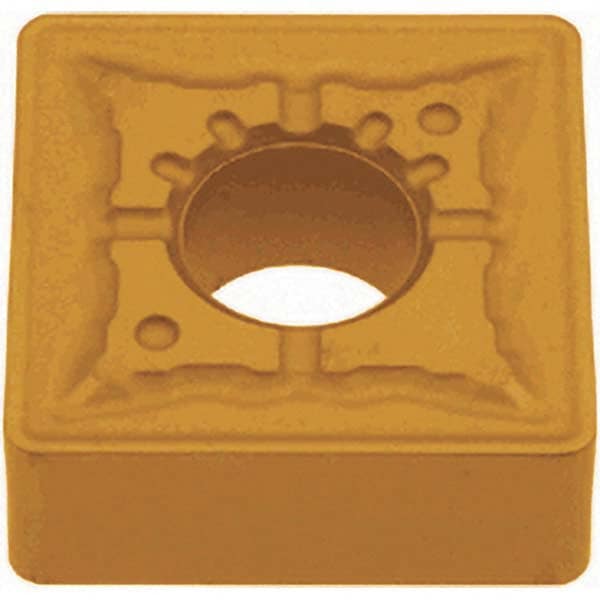

Tungaloy - SNMG544 TH Grade T9225 Carbide Turning Insert


Item #: 12176251
Brand: Tungaloy
Model #: 6780881

Features and Benefits

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Insert Style SNMG
Insert Size 544
Material Carbide
Length (Inch) 5/8
Inscribed Circle (Inch) 5/8
Thickness (Inch) 1/4
Corner Radius (Inch) 1/16
Manufacturer's Grade T9225
Coating TiN/TiCN/Al2O3/TiN
Material Grade P20/P30
Chip Breaker TH
Insert Length (Decimal Inch) 0.6250
Coating Process CVD
Manufacturers Catalog Number SNMG150616-TH
Cutting Direction Neutral
Insert Hand Neutral
Material Carbide
Cutting Direction Neutral
Corner Radius (Decimal Inch) 1/16
Coating Process CVD
Coating TiN/TiCN/Al2O3/TiN
Material Grade P20/P30
Material Carbide
Manufacturer's Grade T9225
Insert Style SNMG
Insert Size 544
Shape Square
Coating Process CVD
Coating TiN/TiCN/Al2O3/TiN
Material Grade P20/P30
Material Carbide
Manufacturer's Grade T9225
Insert Style SNMG
Insert Size 544
Cutting Direction Neutral
Insert Hand Neutral
Shape Square
$271.76

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
