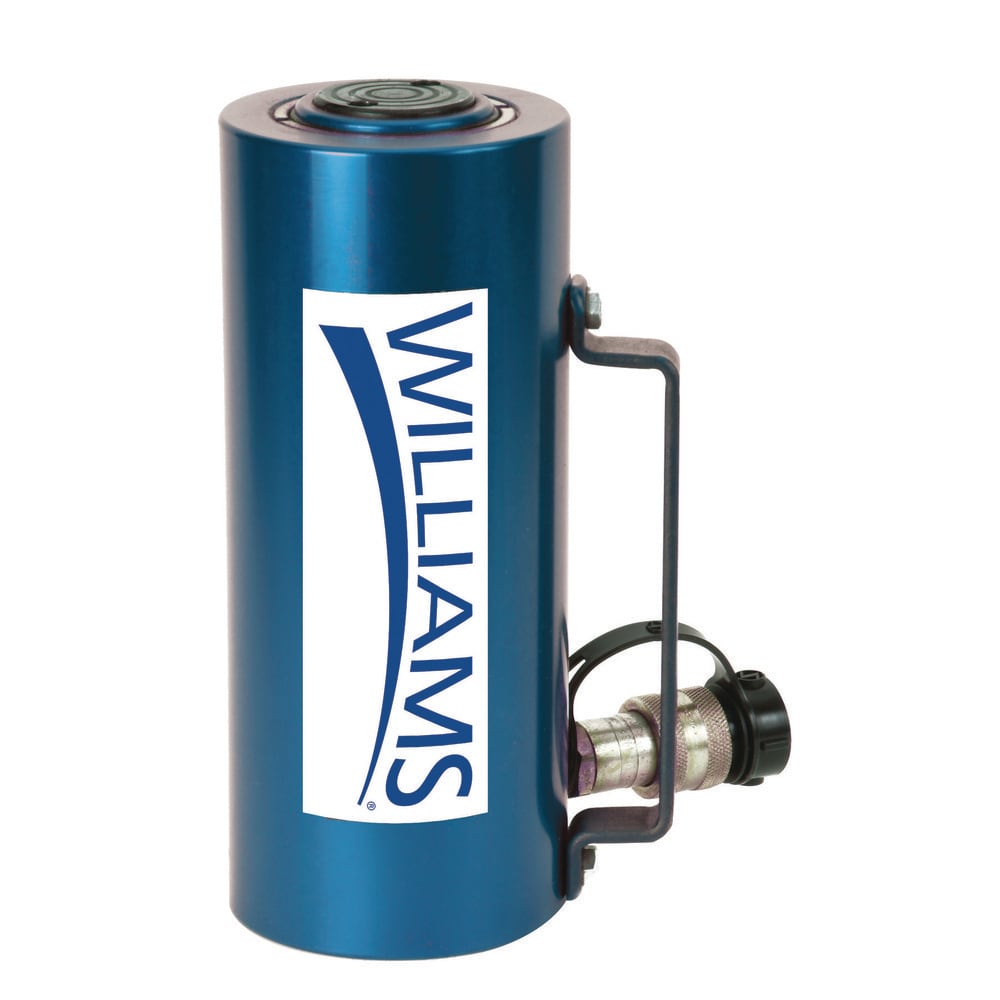

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 30 TON; Stroke Length: 2.00; Piston Stroke (Decimal Inch): 2.0000; Oil Capacity: 13.00; Cylinder Effective Area: 6.50; Lowered Height: 6.50
Item #: 54379748
Brand: Williams
Model #: 6CA30T02
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 30 TON |
| Stroke Length | 2.00 |
| Piston Stroke (Decimal Inch) | 2.0000 |
| Oil Capacity | 13.00 |
| Cylinder Effective Area | 6.50 |
| Lowered Height | 6.50 |
| Retracted Length | 6.50 |
| Extended Length | 8.50 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 4.50 |
| Rod Diameter | 2.90 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Aluminum |
| Rod Thread Size | .23 |
| Saddle Diameter | 2.00 |
| Y Center Hole Diameter | 2.90 |
| Maximum Height (Inch) | 8.50 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 30 TON |
| Stroke Length | 2.00 |
| Piston Stroke (Decimal Inch) | 2.0000 |
| Oil Capacity | 13.00 |
| Cylinder Effective Area | 6.50 |
| Lowered Height | 6.50 |
| Retracted Length | 6.50 |
| Extended Length | 8.50 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 4.50 |
| Rod Diameter | 2.90 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Aluminum |
| Rod Thread Size | .23 |
| Saddle Diameter | 2.00 |
| Y Center Hole Diameter | 2.90 |
| Maximum Height (Inch) | 8.50 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54379748 |
| Mfr Part # | 6CA30T02 |
| Country of Origin Country of Origin is subject to change | Taiwan |
