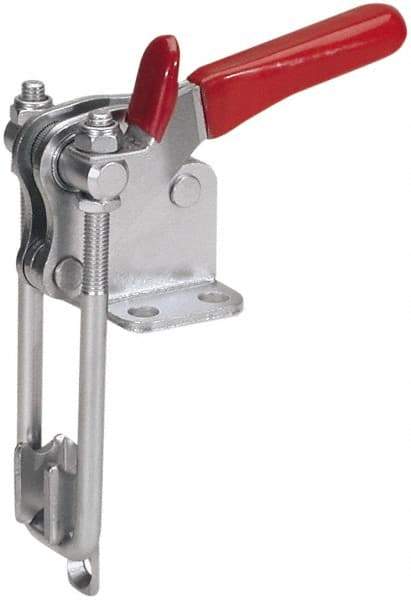

De-Sta-Co - 1,000 Lb Capacity, Vertical, U Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 2.04" Drawing Movement, 4.1" OAL, Threaded U Hook, Straight Handle
Item #: 06966782
Brand: De-Sta-Co
Model #: 334-SS
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a latching hook that is 90 degrees to the mounting base. They are manufactured with holding capacities of up to 4,000 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 4448.22 |
| Load Capacity (Lb.) | 1000.00 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 4.1000 |
| Overall Length (mm) | 104.14 |
| Overall Height (mm) | 140.21 |
| Overall Height (Decimal Inch) | 5.5200 |
| Drawing Movement (mm) | 51.82 |
| Drawing Movement (Decimal Inch) | 2.0400 |
| Handle Color | Red |
| Base Length (mm) | 33.27 |
| Base Length (Decimal Inch) | 1.3100 |
| Base Width (mm) | 39.62 |
| Base Width (Decimal Inch) | 1.5600 |
| Mounting Hole Diameter (mm) | 7.11 |
| Mounting Hole Diameter (Decimal Inch) | 0.2800 |
| Width Distance Between Mount Holes (mm) | 25.40 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.0000 |
| Length Distance Between Mount Holes (mm) | 19.05 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7500 |
| Bar Width (mm) | 28.70 |
| Bar Width (Decimal Inch) | 1.1300 |
| Bar Thickness (Decimal Inch) | 0.2500 |
| Base to Center of Bar (Decimal Inch) | 0.3500 |
| Base to Center of Bar (mm) | 8.89 |
| Includes | Latch Plate; Patented Thumb Control Lever; Threaded U-Hook |
