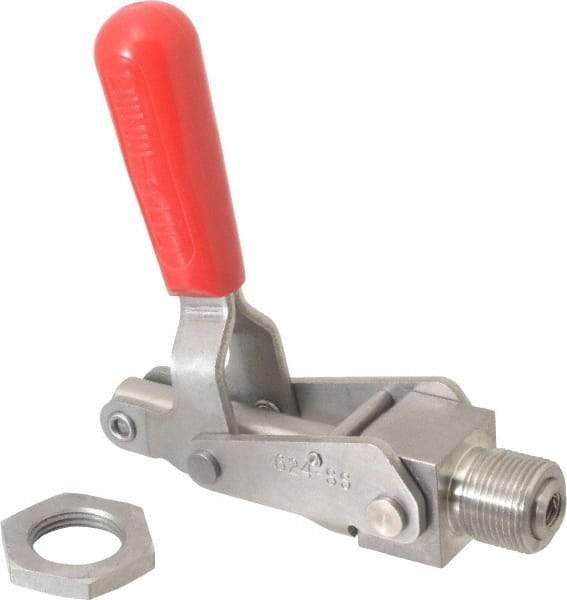

De-Sta-Co - 700 Lb Load Capacity, Mounting Plate Base, Stainless Steel, Standard Straight Line Action Clamp - 0.62" Plunger Diam, Straight Handle
Item #: 06966444
Brand: De-Sta-Co
Model #: 624-SS
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 3113.76 |
| Load Capacity (Lb.) | 700.00 |
| Plunger Travel (mm) | 66.80 |
| Plunger Travel (Decimal Inch) | 2.6300 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Diameter (Decimal Inch) | 0.6200 |
| Plunger Diameter (mm) | 15.75 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 6.6800 |
| Overall Height (Decimal Inch) | 5.6000 |
| Base Length (Decimal Inch) | 3.0000 |
| Base Width (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 169.67 |
| Overall Height (mm) | 142.24 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (Decimal Inch) | 1.5000 |
| Jam Nut Thread Size | 1-14 |
| Maximum Mechanical Advantage | 21:1 (Pulling); 49:1 (Pushing) |
| Includes | Jam Nut |
