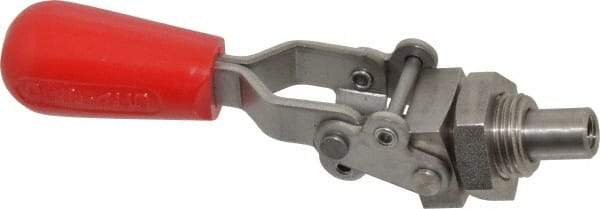

De-Sta-Co - 200 Lb Load Capacity, Mounting Plate Base, Stainless Steel, Standard Straight Line Action Clamp - 0.39" Plunger Diam, Straight Handle
Item #: 06966170
Brand: De-Sta-Co
Model #: 602-SS
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 889.64 |
| Load Capacity (Lb.) | 200.00 |
| Plunger Travel (mm) | 19.05 |
| Plunger Travel (Decimal Inch) | 0.7500 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 1/4-20 |
| Plunger Diameter (Decimal Inch) | 0.3900 |
| Plunger Diameter (mm) | 9.40 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.6200 |
| Overall Height (Decimal Inch) | 3.1300 |
| Overall Length (mm) | 66.55 |
| Overall Height (mm) | 79.50 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (Decimal Inch) | 0.4400 |
| Jam Nut Thread Size | 5/8-18 |
| Maximum Mechanical Advantage | 28:1 (Pulling); 31:1 (Pushing) |
| Includes | Jam Nut |
