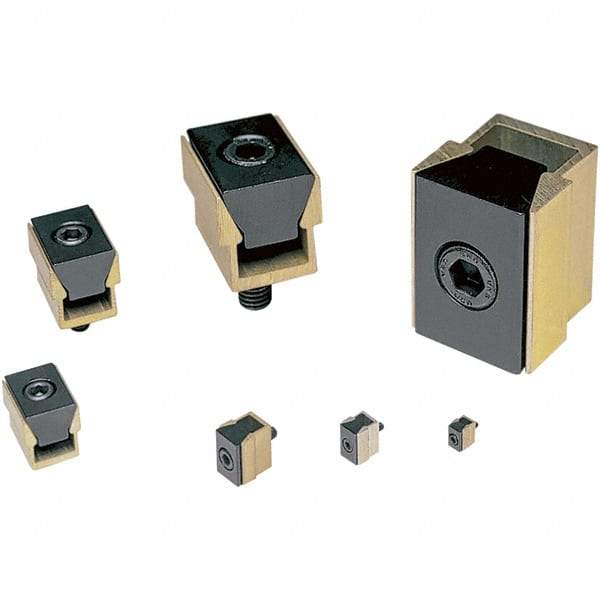

Mitee-Bite - 6,000 Lb Holding Force Single T-Slot Wedge Clamp - 1-5/8" Wide x 2-1/2" Deep x 2" High Base, 1.96 to 2.08" Jaw Spread, 55 Lb/Ft Torque, 5/8-11 Screw Thread
Item #: 06948251
Brand: Mitee-Bite
Model #: 62000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | T-Slot |
| Single or Double Wedge | Single |
| Screw Thread Size | 5/8-11 |
| Machinable | No |
| Holding Force (Lb.) | 6000.00 |
| Torque (Ft/Lb) | 55.00 |
| Base Height (Decimal Inch) | 2.0000 |
| Base Width (Decimal Inch) | 1.6250 |
| Base Depth (Decimal Inch) | 2.5000 |
| Clearance Width (Decimal Inch) | 2.0000 |
| Minimum Jaw Spread (Decimal Inch) | 1.9600 |
| Maximum Jaw Spread (Decimal Inch) | 2.0800 |
| Projection From Base (Decimal Inch) | 1.0000 |
| Hex Key Size (Inch) | 1/2 |
| Overall Width (Decimal Inch) | 1.9600 |
| Number of Clamps | 2 |
