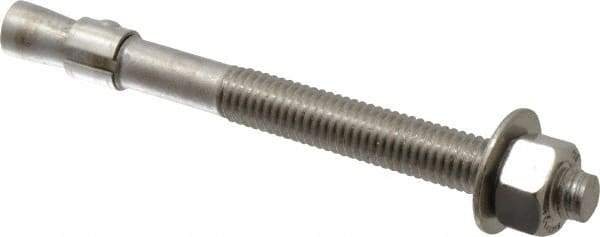

Red Head - 1/2" Diam, 1/2" Drill, 5-1/2" OAL, Wedge Expansion Concrete Anchor - 316 Stainless Steel, Hex Nut Head, Hex Drive, 3" Thread Length
Item #: 06935175
Brand: Red Head
Model #: SWW-1254
Exact Tooling IR#: 04
Features and Benefits
Wedge expansion concrete anchors are heavy-duty anchors used in cracked and uncracked concrete. They have expansion wedges that expand in concrete holes to increase holding power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wedge Expansion |
| Diameter (Inch) | 1/2 |
| Drill Size (Inch) | 1/2 |
| Overall Length (Inch) | 5-1/2 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Head Type | Hex Nut |
| Thread Size | 1/2-13 |
| Drive Type | Hex |
| Thread Length (Inch) | 3 |
| Thread Length (mm) | 76.20 |
| Fastener Standard | ACI 355.2; ANSI B212.15 |
| Overall Length (mm) | 139.70 |
| System of Measurement | Inch |
