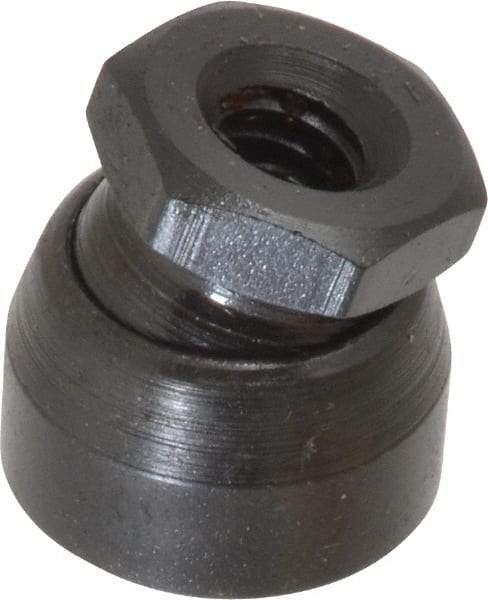

TE-CO - 1/4-20, 5/8" Pad Diam, Uncoated Bottom, Steel Toggle Pad - 13/32 Depth, 5/8" OAL, 1/2" Width Across Flats, Black Oxide Coated, Grade 12L14, 10° Swivel Angle
Item #: 06854012
Brand: TE-CO
Model #: 44302
Exact Tooling IR#: 04
Features and Benefits
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
UNC indicates unified national coarse thread standards. Coarse threads have more TPI (threads per inch) and larger thread pitches.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Pad Diameter (Inch) | 5/8 |
| Bottom Type | Uncoated |
| Material | Steel |
| Pad Material | Steel |
| Overall Length (Inch) | 5/8 |
| Width Across Flats (Inch) | 1/2 |
| Thread Depth (Inch) | 13/32 |
| Thread Standard | UNC |
| Swivel Angle | 10.00 |
| Material Grade | 12L14 |
| Finish/Coating | Black Oxide |
