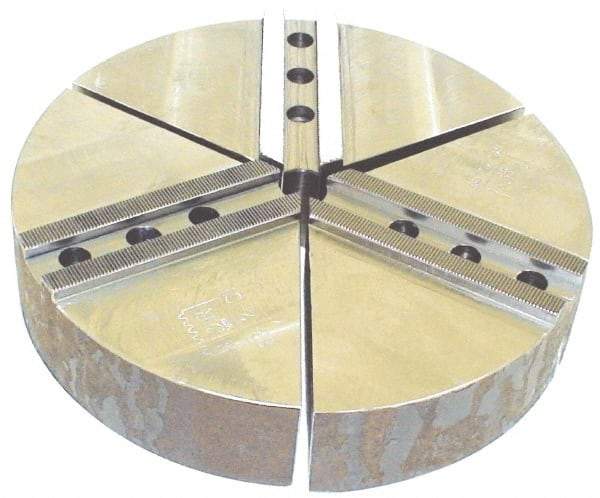

H & R Manufacturing - 12" Chuck Capacity, 1.5mm x 60° Serrated Attachment, Round Soft Lathe Chuck Jaw - 3 Jaws, Cast Iron, 1.181" Btw Mount Hole Ctrs, 6" Long x 12" Wide x 4" High, 0.71" Groove, 14mm Fastener
Item #: 06829287
Brand: H & R Manufacturing
Model #: HR-108-4-CI
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Cast Iron |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Overall Height (Inch) | 4 |
| Groove Width (Decimal Inch) | 0.7100 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1810 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 14.00 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 12 |
| Overall Length (Inch) | 6 |
