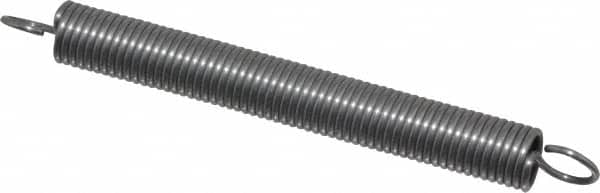

Made in USA - 1/4" OD, 6.25 Lb Max Load, 4.67" Max Ext Len, 0.032" Wire Diam Spring - 2.36 Lb/In Rating, 1.17 Lb Init Tension, 2-1/2" Free Length
Item #: 06814024
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.2500 |
| Outside Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Maximum Work Load (Pounds) | 6.2500 |
| Maximum Extended Length (Decimal Inch) | 4.6700 |
| Spring Rate Pounds per Inch (Pounds) | 2.3600 |
| Initial Tension (Pounds) | 1.1700 |
| Free Length (Inch) | 2-1/2 |
| Free Length (Decimal Inch) | 2.500 |
