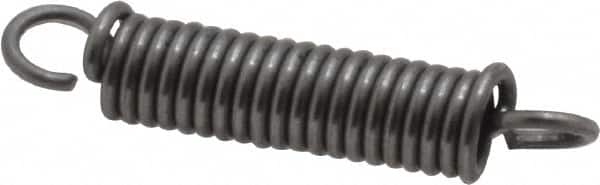

Made in USA - 3/16" OD, 8.23 Lb Max Load, 1.29" Max Ext Len, 0.032" Wire Diam Spring - 21.84 Lb/In Rating, 1.9 Lb Init Tension, 1" Free Length
Item #: 06813786
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.1880 |
| Outside Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 1 |
| Maximum Work Load (Pounds) | 8.2300 |
| Maximum Extended Length (Decimal Inch) | 1.2900 |
| Spring Rate Pounds per Inch (Pounds) | 21.8400 |
| Initial Tension (Pounds) | 1.9000 |
| Free Length (Inch) | 1 |
| Free Length (Decimal Inch) | 1.000 |
