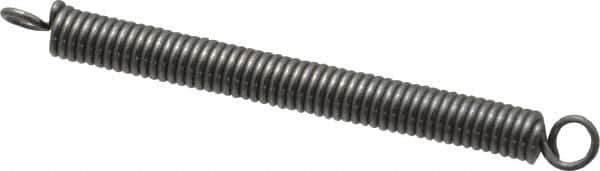

Made in USA - 1/8" OD, 4.76 Lb Max Load, 2.05" Max Ext Len, 0.023" Wire Diam Spring - 7.1 Lb/In Rating, 0.92 Lb Init Tension, 1-1/2" Free Length
Item #: 06813638
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.1250 |
| Outside Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Maximum Work Load (Pounds) | 4.7600 |
| Maximum Extended Length (Decimal Inch) | 2.0500 |
| Spring Rate Pounds per Inch (Pounds) | 7.1000 |
| Initial Tension (Pounds) | 0.9200 |
| Free Length (Inch) | 1-1/2 |
| Free Length (Decimal Inch) | 1.500 |
