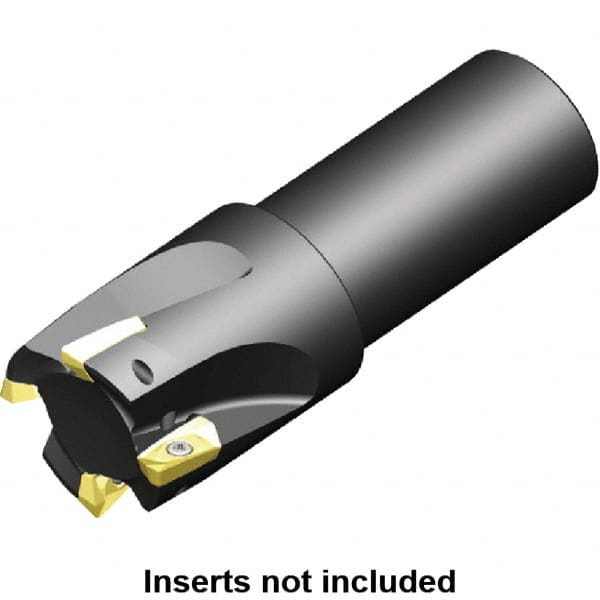

Kennametal - 40mm Cut Diam, 14.4mm Max Depth of Cut, 32mm Shank Diam, 200mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 1404.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 1-14
Item #: 06802706
Brand: Kennametal
Model #: 2968369
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 200.00 |
| Overall Length/Projection (Decimal Inch) | 7.8740 |
| Lead Angle | 0 |
| Series | Mill 1-14 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 14.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.5669 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | ED.T 1404.. |
| Shank Length (Decimal Inch) | 5.9055 |
| Shank Length (mm) | 150.00 |
| Maximum RPM | 28700 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
