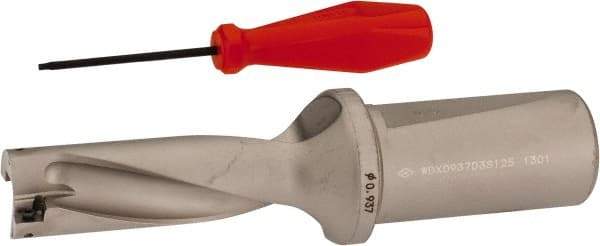

Sumitomo - 2.931" Max Drill Depth, 3xD, 15/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 06704696
Brand: Sumitomo
Model #: 2A00W2M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (Inch) | 15/16 |
| Drill Diameter (Decimal Inch) | 0.9375 |
| Maximum Drill Depth (Decimal Inch) | 2.9310 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 6.1390 |
| Insert Compatibility | WDXT 073506 |
| Flute Length (Decimal Inch) | 2.9310 |
| Body Length (Decimal Inch) | 3.6390 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (Decimal Inch) | 1.6140 |
| Series | SumiDrill |
