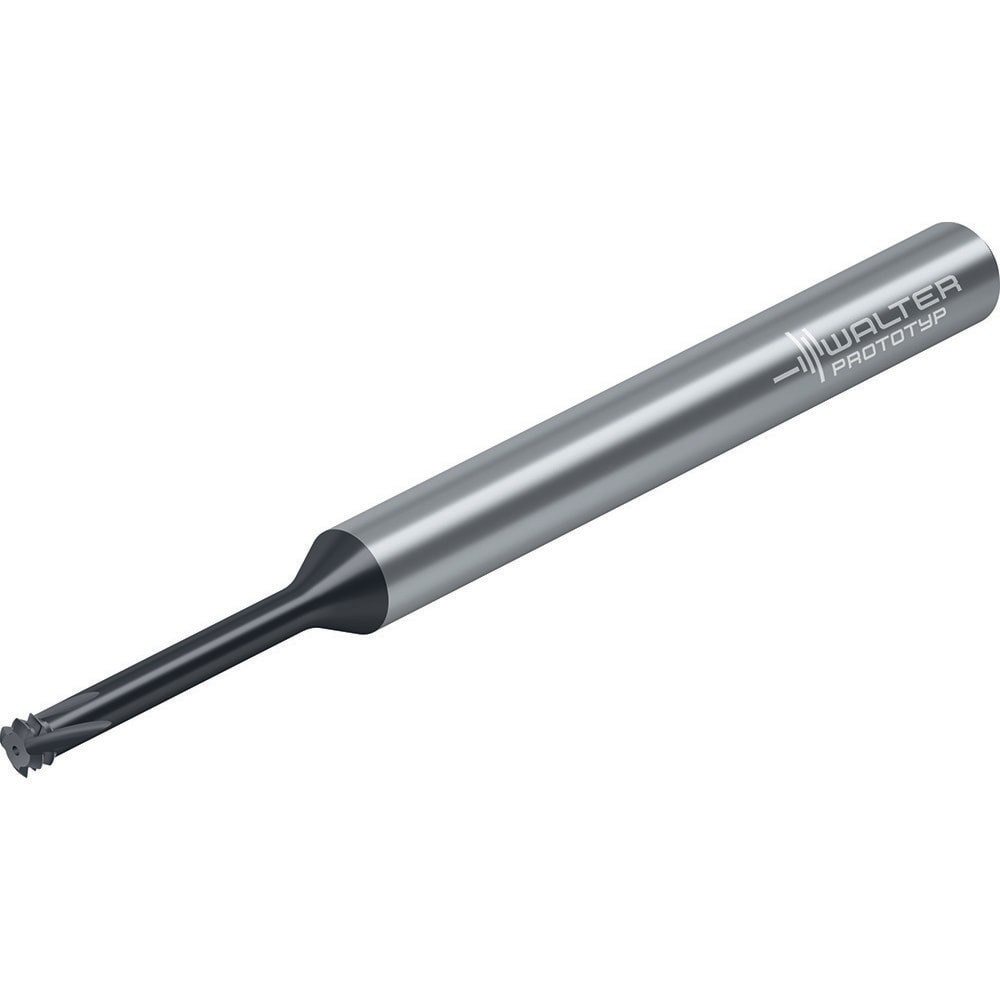

Helical Flute Thread Mill: M3x0.5, Internal, 4 Flute, 4.0000 mm Shank Dia, Solid Carbide
Item #: 56216435
Brand: Walter-Prototyp
Model #: 8445161
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M3x0.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Cutting Diameter (mm) | 2.30 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0906 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0394 |
| Length of Cut (mm) | 1.0000 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 44.0000 |
| Overall Length (Decimal Inch) | 1.7323 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC630-M-A1H |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M3x0.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Cutting Diameter (mm) | 2.30 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0906 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0394 |
| Length of Cut (mm) | 1.0000 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 44.0000 |
| Overall Length (Decimal Inch) | 1.7323 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC630-M-A1H |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 56216435 |
| Mfr Part # | 8445161 |
| Country of Origin Country of Origin is subject to change | Germany |
