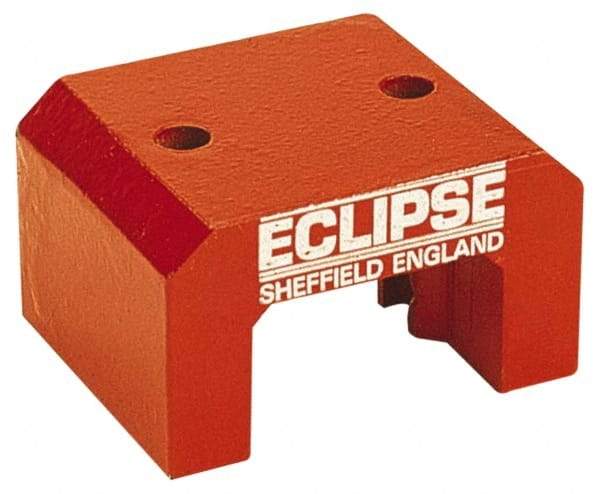

Eclipse - 2 Hole, 0.374" Hole Diam, 3-1/4" Overall Width, 3-1/8" Deep, 2-1/8" High, 101 Lb Average Pull Force, Alnico Power Magnets - 20.65mm Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 06570121
Brand: Eclipse
Model #: 816/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 82.55 |
| Overall Width (Inch) | 3-1/4 |
| Overall Width (Decimal Inch) | 3.2500 |
| Height (Decimal Inch) | 2.1250 |
| Height (mm) | 53.98 |
| Height (Inch) | 2-1/8 |
| Depth (Decimal Inch) | 3.1250 |
| Depth (mm) | 79.38 |
| Depth (Inch) | 3-1/8 |
| Average Pull Force (Lb.) | 101.00 |
| Maximum Pull Force (Lb.) | 103.62 |
| Maximum Pull Force (kg) | 47.00 |
| Gap Width (mm) | 38.10 |
| Gap Width (Inch) | 1-1/2 |
| Number of Holes | 2 |
| Hole Diameter (Decimal Inch) | 0.3740 |
| Hole Diameter (mm) | 9.50 |
| Pole Width (mm) | 20.65 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (C) | 550.00 |
