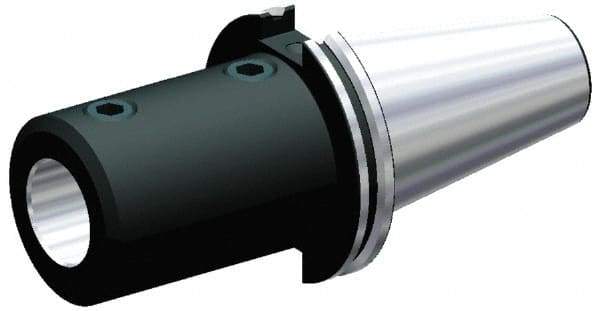

Kennametal - CAT50 Outside Taper, 2-1/2" Hole Diam, SS to CAT Straight Shank Adapter - 8" Projection, 4" Nose Diam, 304.8mm OAL, Through Coolant
Item #: 06494942
Brand: Kennametal
Model #: 1018425
Exact Tooling IR#: 04
Features and Benefits
Straight shank adapters are used for holding straight shank tools in a tapered machine spindle.
| Product Specifications | |
|---|---|
| Type | Straight Shank Adapter |
| Taper Adapter Type | SS to CAT |
| Outside Taper Size | CAT50 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (mm) | 63.50 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Projection (Decimal Inch) | 8.0000 |
| Projection (mm) | 203.20 |
| Projection (Inch) | 8 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 4.0000 |
| Nose Diameter (Inch) | 4 |
| Overall Length (mm) | 304.80 |
| Overall Length (Decimal Inch) | 12.0000 |
| Drawbar Thread Size | 1-8 |
