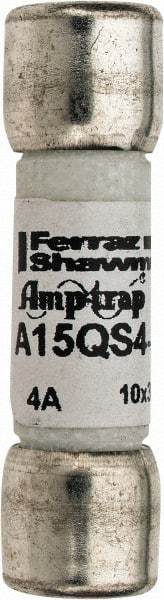

Ferraz Shawmut - 150 VAC/VDC, 4 Amp, Fast-Acting Semiconductor/High Speed Fuse - Clip Mount, 1-1/2" OAL, 100 at AC, 50 at DC kA Rating, 13/32" Diam
Item #: 06457774
Brand: Ferraz Shawmut
Model #: A15QS4-2
Exact Tooling IR#: 04
Features and Benefits
Semiconductor/high speed fuses are designed to protect devices from overcurrents. They are quick reacting, reduce the need of other components to have high short-circuit current ratings.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Semiconductor/High Speed |
| Amperage | 4 |
| Voltage | 150 VAC/VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.40 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Ceramic |
| Mounting Type | Clip |
| Indicating Information | NonIndicating |
| Interrupting Rating (kA) | 100 @ AC; 50 @ DC |
| Standards Met | UL 198L; UL File E60314; UL Guide JFHR2; UL Recognized |
