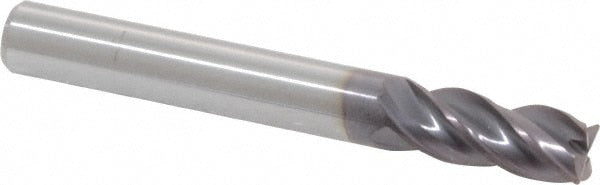

Corner Radius End Mill: 8 mm Dia, 19.00 mm LOC, 0.50 mm Radius, 4 Flute, Solid Carbide
Item #: 72329295
Brand: M.A. Ford
Model #: 17731501A
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 19.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | ALtima |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 63.00 |
| Coolant Through | No |
| Pitch | Normal |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7480 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 8.00 |
| Reach Length (mm) | 19.00 |
| Mill Diameter Tolerance | +0.000/-0.058 mm |
| Shank Diameter Tolerance | +0.000/0.008 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Series | 177 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | 17731501A |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 19.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | ALtima |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 63.00 |
| Coolant Through | No |
| Pitch | Normal |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7480 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 8.00 |
| Reach Length (mm) | 19.00 |
| Mill Diameter Tolerance | +0.000/-0.058 mm |
| Shank Diameter Tolerance | +0.000/0.008 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Series | 177 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | 17731501A |
| MSC Part # | 72329295 |
| Mfr Part # | 17731501A |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
