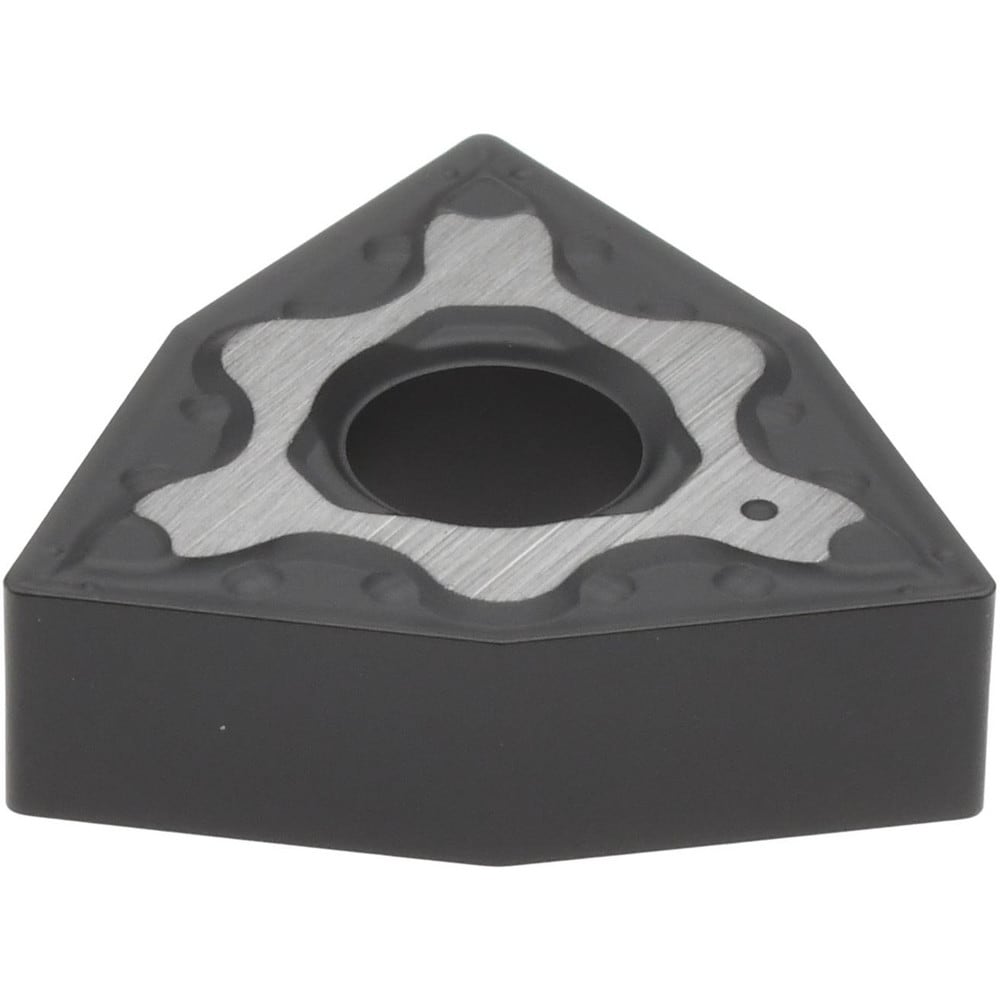

Turning Insert: WNMG080404WM+ ACP25M, Carbide
Item #: 75283978
Brand: Accupro
Model #: 75283978
Product Specifications
| ANSI Insert Code | WNMG431 |
| ISO Insert Code | WNMG080404 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2043 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | WNMG080404 |
| Standards | ANSI Code: WNMG431 |
| Chip Breaker | WM+ |
| ANSI Size Code | 431 |
| ISO Size Code | 080404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 08 |
| ANSI Insert Code | WNMG431 |
| ISO Insert Code | WNMG080404 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2043 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | WNMG080404 |
| Standards | ANSI Code: WNMG431 |
| Chip Breaker | WM+ |
| ANSI Size Code | 431 |
| ISO Size Code | 080404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 08 |
| MSC Part # | 75283978 |
| Mfr Part # | 75283978 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
