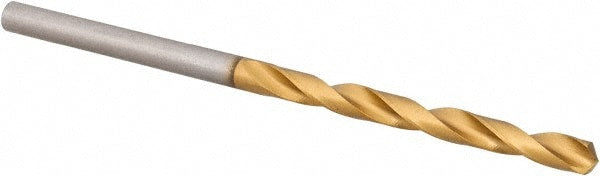

Jobber Drill: #29, 118 deg Point, High Speed Steel
Item #: 76950864
Brand: Guhring
Model #: 9006510034500
Product Specifications
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.1358 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Spiral Type | Regular |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5354 |
| Series | 651 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 3.45 |
| Maximum Drilling Depth (Decimal Inch) | 1.5354 |
| Maximum Drilling Depth (mm) | 39.00 |
| Shank Length (mm) | 31 |
| Shank Length (Decimal Inch) | 1.2205 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Material Grade | M2 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
