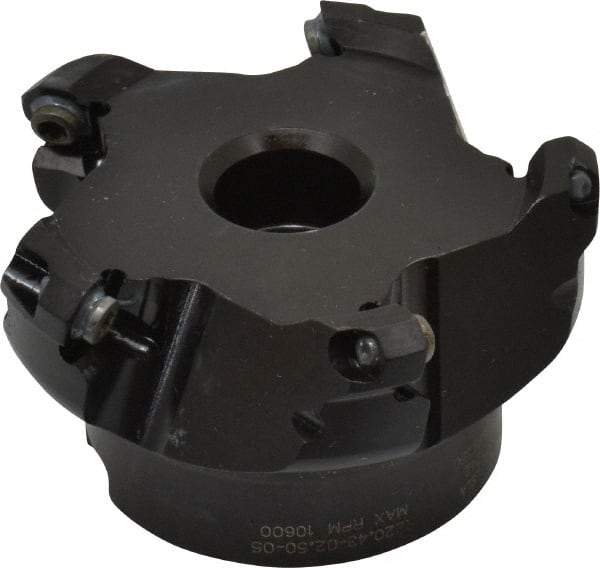

Seco - 2.48" Cut Diam, 3/4" Arbor Hole, 0.138" Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 5 Inserts, OF.. 05T305 Insert, Right Hand Cut, 5 Flutes, Series R220.43
Item #: 06322093
Brand: Seco
Model #: 86839
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | OF.. 05T305 |
| Series | R220.43 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R220.43 |
| Number of Flutes | 5 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Maximum Body Diameter (Decimal Inch) | 2.8300 |
| Maximum RPM | 10600 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
