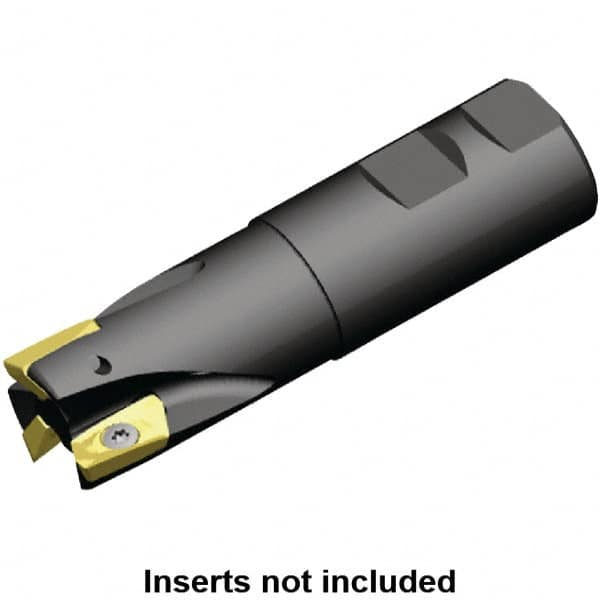

Kennametal - 1-1/4" Cut Diam, 0.57" Max Depth of Cut, 1-1/4" Shank Diam, 4.53" OAL, Indexable Square Shoulder End Mill - EC14.., EP14.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 06281752
Brand: Kennametal
Model #: 2479506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.5300 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5700 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 2.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | EC14.., EP14.. |
| Maximum RPM | 33400 |
