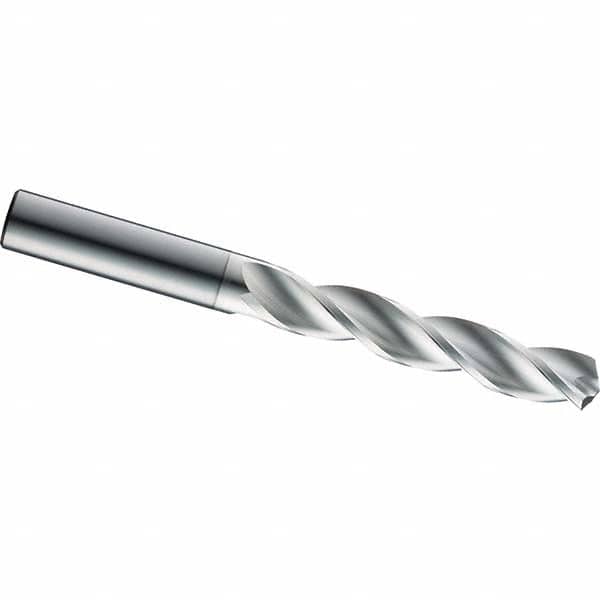

SGS - 10mm 124° Helical Flute Solid Carbide Screw Machine Drill Bit
Item #: 16904435
Brand: SGS
Model #: 64670
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Bit Size (mm) | 10.00 |
| Drill Point Angle | 124 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (Decimal Inch) | 3.5040 |
| Flute Length (Inch) | 1.8504 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Special Point Type |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Flute Type | Helical |
| Maximum Drilling Depth (Decimal Inch) | 3.5000 |
| Number of Flutes | 3 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.5748 |
| Threaded Shank | No |
| Number of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Drill Tip Finish/Coating | None |
| PSC Code | 3455 |
| Through Coolant | No |
| Drill Bit Grade | High Performance |
| Drill Bit Grade | High Performance |
| Material Grade | Micrograin |
| Series/List | 131N |
| Length Type | Regular |
