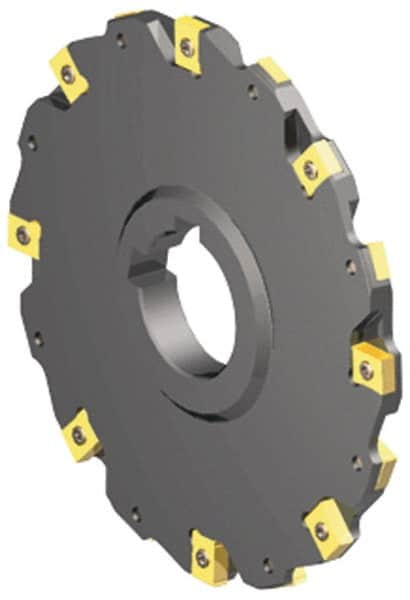

Kennametal - Arbor Hole Connection, 3/16" Cutting Width, 1-1/2" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 14 Tooth Indexable Slotting Cutter - 90° SN Toolholder, SNHX Insert
Item #: 06165567
Brand: Kennametal
Model #: 1247691
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 14 |
| Toolholder Style | 90 SN |
| Series | SN |
| Insert Style | SNHX |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Maximum RPM | 7745 |
| Minimum Cutting Width (Decimal Inch) | 0.1870 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility1 | SNHX 1102PZFNGE; SNHX 1102PZTNGP; SNHX 1102T; SNHX 1103T; SNHX 11T3PZFNGE; SNHX 11T3PZTNGP; SNHX 1203PZFNGE; SNHX 1203PZTNGP; SNHX 1203T; SNHX 12045T; SNHX 1204T; SNHX 1205T; SNHX 12L4PZTNGP; SNHX 12L5PZFNGE; SNHX 12L5PZTNGP |
