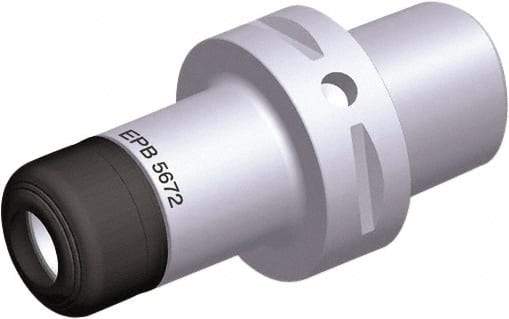

Seco - 1mm to 10mm Capacity, 75mm Projection, Modular Connection, ER16 Collet Chuck - 4.449" OAL
Item #: 06155253
Brand: Seco
Model #: 09329
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Projection (mm) | 75.00 |
| Projection (Decimal Inch) | 2.9530 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 4.4490 |
| Nose Diameter (Decimal Inch) | 1.1810 |
| PSC Code | 5136 |
| Balanced to (RPM) | 60000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1811 |
| Collet Nut Diameter (mm) | 30.00 |
