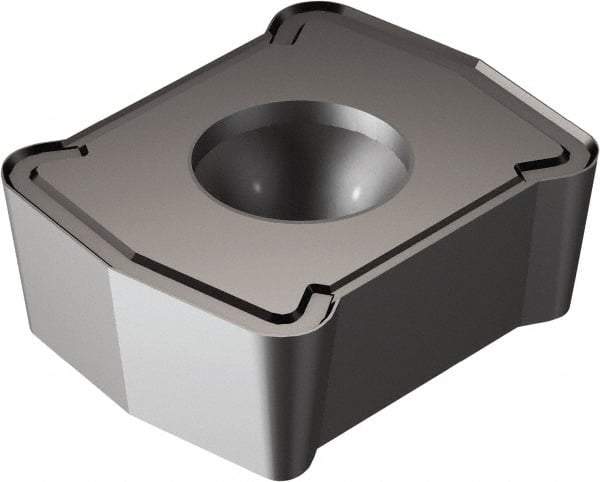

Sandvik Coromant - LCMX30304 WM Grade 3040 Carbide Indexable Drill Insert - CVD Ti(C,N)+Al2O3 Finish
Item #: 06097273
Brand: Sandvik Coromant
Model #: 5735043
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 30304 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Thickness (mm) | 3.17 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.45 |
| Corner Radius (Decimal Inch) | 0.017717 |
| Length (mm) | 19 |
| Length (Decimal Inch) | 0.7480 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 7 |
| Coating | CVD Ti(C,N)+Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | WM |
