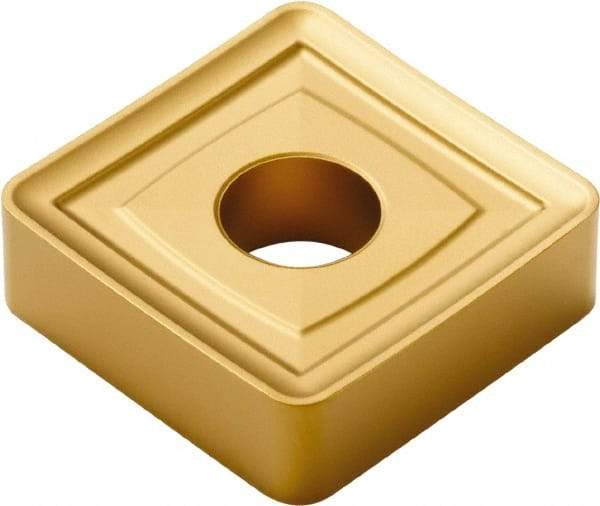

Seco - SNMM856 RR9 Grade TP40 Carbide Turning Insert - TiC/TiCN/TiN Finish, 90° Square, 1" Inscr Circle, 5/16" Thick, 3/32" Corner Radius
Item #: 06092779
Brand: Seco
Model #: 19502
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 856 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | TP40 |
| Coating | TiC/TiCN/TiN |
| Chip Breaker | RR9 |
| Hole Diameter (Decimal Inch) | 0.3630 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
