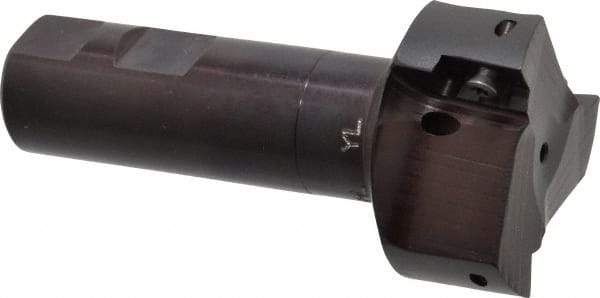

Kyocera - 2" Cut Diam, 0.64" Max Depth of Cut, 1" Shank Diam, 4-1/4" OAL, Indexable Square Shoulder End Mill - APET 1604 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 06023493
Brand: Kyocera
Model #: 8601024
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Inch) | 4-1/4 |
| Overall Length/Projection (Decimal Inch) | 4.2500 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6400 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EM-AL |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Insert Compatibility | APET 1604 |
| Extension Length (Decimal Inch) | 1.990 |
